Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm

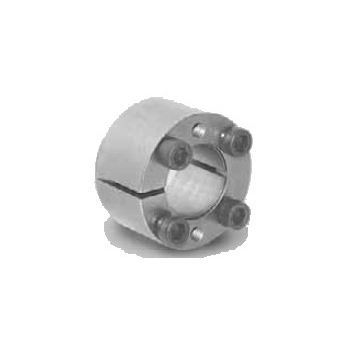

Drivelock 61 19x35mm (DL61/19)
Drivelock 61 19x35mm (DL61/19)
Part No. | 7930-807 |
Code | DL61/19 |
d (h8) (mm) | 19 |
D (mm) | 35 |
L1 (mm) | 21 |
L (mm) | 25 |
B (mm) | M4 |
Ts Nm | 4.9 |
T Nm | 85 |
F kN | 8 |
p N/mm2 | 60 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
