Drivelock® 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mm

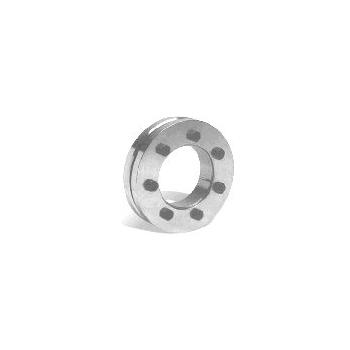

Drivelock 19 36x72mm (DL19/36)
Drivelock 19 36x72mm (DL19/36)
| Part No. | 7930-403 |
| Code | DL19/36 |
| d2 (mm) | 36 |
| D (mm) | 72 |
| d1 (mm) | 28 |
| M(Screws) | M6 |
| I (mm) | 18 |
| B (mm) | 23.5 |
| L (mm) | 27.5 |
| Ts Nm | 12 |
| T Nm | 440 |
| F kN | 50 |
| Part No. | 7930-403 |
| Code | DL19/36 |
| d2 (mm) | 36 |
| D (mm) | 72 |
| d1 (mm) | 30 |
| M(Screws) | M6 |
| I (mm) | 18 |
| B (mm) | 23.5 |
| L (mm) | 27.5 |
| Ts Nm | 12 |
| T Nm | 570 |
| F kN | 58 |
| Part No. | 7930-403 |
| Code | DL19/36 |
| d2 (mm) | 36 |
| D (mm) | 72 |
| d1 (mm) | 31 |
| M(Screws) | M6 |
| I (mm) | 18 |
| B (mm) | 23.5 |
| L (mm) | 27.5 |
| Ts Nm | 12 |
| T Nm | 630 |
| F kN | 58 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
