Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

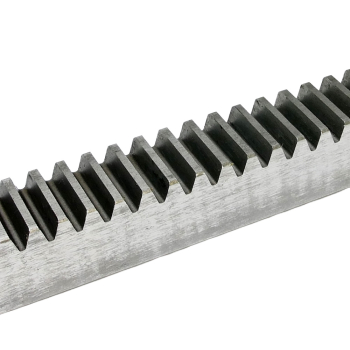

Cont. Mounting Steel Rectangular Rack Mod 3 30x30mmx2m, Hardened (SR30/30/2CIHT)
Cont. Mounting Steel Rectangular Rack Mod 3 30x30mmx2m, Hardened (SR30/30/2CIHT)
| Part No. | 7700-416 |
| Code | SR30/30/2CIHT |
| Pitch module | 3 |
| Width B (h11) | 30 |
| Height A (h11) | 30 |
| Height to Pitch Line hp | 27 |
| Tolerance of cut for continuous mounting | -0.05/-0.99 |
| No. teeth | 212 |
| Length L | 1998.05 |
