Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

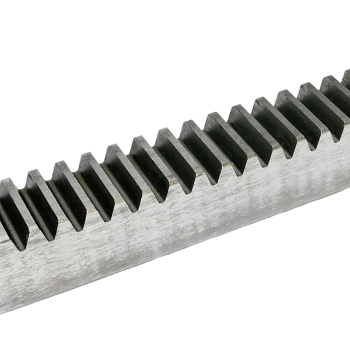

Cont. Mounting Steel Rectangular Rack Mod 2.5 25x25mmx0.5m (SR25/25/0.5C)
Cont. Mounting Steel Rectangular Rack Mod 2.5 25x25mmx0.5m (SR25/25/0.5C)
| Part No. | 7700-407 |
| Code | SR20/20/1C |
| Pitch Module | 2.5 |
| Width B | 25 |
| Height A | 25 |
| Height to Pitch Line hp | 22.5 |
| No. of Teeth | 64 |
| Length L | 502.66 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
