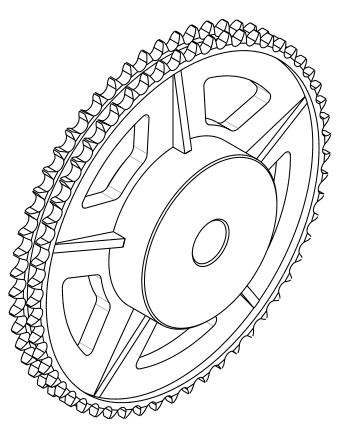

Duplex 1 1/2" (24B) British Standard pitch sprocket. Manufactured in cast iron.

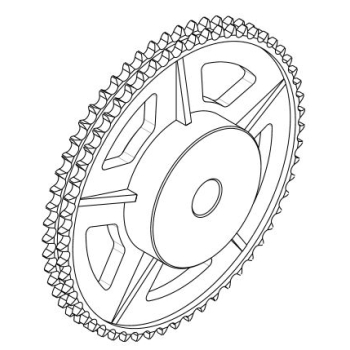

24B-2 76T Duplex Cast Iron Sprocket (12DR76C)
24B-2 76T Duplex Cast Iron Sprocket (12DR76C)
| Part No. | 7828-014 |
| Code | 12DR76C |
| No. teeth | 76 |
| Outside dia. de | 936.9 |
| Pitch dia. dp | 921.98 |
| Boss dia. | 220 |
| Bore D1* | 55 |
| Overall Width A | 120 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
