Duplex 1 1/2" (24B) British Standard pitch sprocket. Manufactured in cast iron.
24B-2 57T Duplex Cast Iron Sprocket (12DR57C)
24B-2 57T Duplex Cast Iron Sprocket (12DR57C)

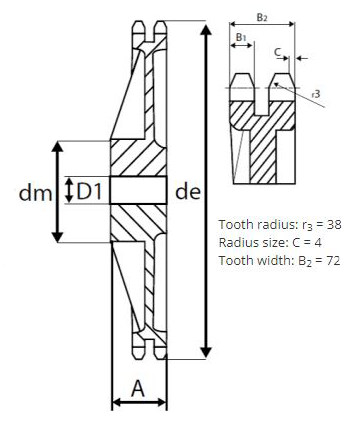

| Part No. | 7828-013 |
| Code | 12DR57C |
| No. teeth | 57 |
| Outside dia. de | 706.5 |
| Pitch dia. dp | 691.63 |
| Boss dia. | 200 |
| Bore D1* | 55 |
| Overall Width A | 110 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
