2 Bolt short base pillow block cast iron bearing housing complete with steel bearing insert

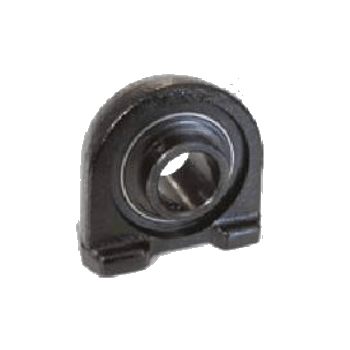

UCPA 207 35mm, Compact Pillow Block (UCPA/207)
UCPA 207 35mm, Compact Pillow Block (UCPA/207)
| Part Number | 7910-506 |
| Code | UCPA/207 |
| UCPA | 207 |
| Bore (mm) | 35 |
| c | 47.6 |
| l | 110 |
| r | 80 |
| s | 48 |
| w | M14x2.0 |
| e | 13 |
| n | 95 |
| A | 42.9 |
| o | 18 |
| h | 20 |
| Bearing No. | UC207 |
| Housing No. | PA207 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
