2 Bolt short base pillow block cast iron bearing housing complete with steel bearing insert

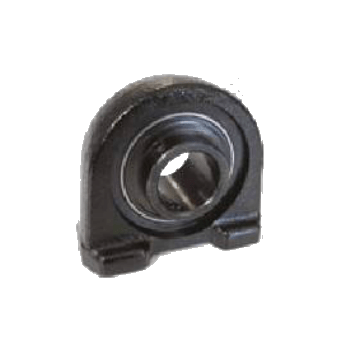

UCPA 206 30mm, Compact Pillow Block (UCPA/206)
UCPA 206 30mm, Compact Pillow Block (UCPA/206)
| Part Number | 7910-505 |
| Code | UCPA/206 |
| UCPA | 206 |
| Bore (mm) | 30 |
| c | 42.9 |
| l | 94 |
| r | 66 |
| s | 48 |
| w | M14x2.0 |
| e | 12 |
| n | 84 |
| A | 38.1 |
| o | 16 |
| h | 18 |
| Bearing No. | UC206 |
| Housing No. | PA206 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
