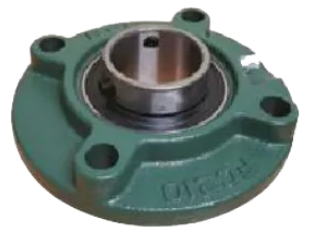

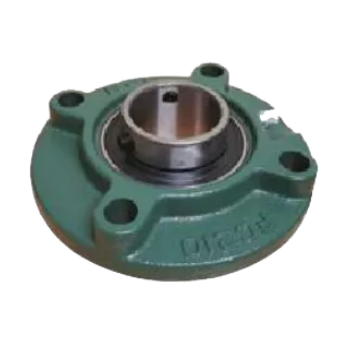

Round cast iron bearing housing complete with steel bearing insert
UCFC 206 30mm, 4-Bolt Round Flange Bearing (UCFC/206)
UCFC 206 30mm, 4-Bolt Round Flange Bearing (UCFC/206)
| Part Number | 7910-105 |
| Code | UCFC/206 |
| UCFC | 206 |
| Bore (mm) | 30 |
| l | 125 |
| z | 100 |
| r | 70.7 |
| v | 10 |
| U | 12 |
| y | 8 |
| w | 8 |
| e | 23 |
| h | 80 |
| m | 32.2 |
| A | 38.1 |
| o | 15.9 |
| Bearing No. | UC206 |
| Bolt size | M10 |
| Housing No. | FC206 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
