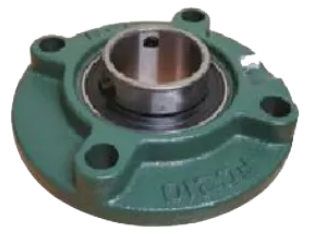

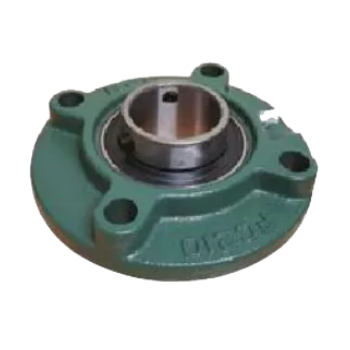

Round cast iron bearing housing complete with steel bearing insert
UCFC 205 25mm, 4-Bolt Round Flange Bearing (UCFC/205)
UCFC 205 25mm, 4-Bolt Round Flange Bearing (UCFC/205)
| Part Number | 7910-104 |
| Code | UCFC/205 |
| UCFC | 205 |
| Bore (mm) | 25 |
| l | 115 |
| z | 90 |
| r | 63.6 |
| v | 10 |
| U | 12 |
| y | 6 |
| w | 7 |
| e | 21 |
| h | 70 |
| m | 29.7 |
| A | 34 |
| o | 14.3 |
| Bearing No. | UC205 |
| Bolt size | M10 |
| Housing No. | FC205 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
