Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm.. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent
Steel Spur Gear Mod 5 13T, With Hub (SS50/13B)
Steel Spur Gear Mod 5 13T, With Hub (SS50/13B)

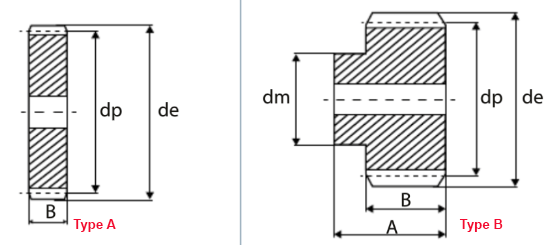

| Part No. | 7702-955 |
| Code | SS50/13B |
| Type | B |
| No. of Teeth | 13 |
| Pitch Ø dp | 65 |
| Bore Ø H8 | 16/20 |
| Hub/Boss Ø dm | 50 |
| Outside Ø de | 75 |
| O/A Width A | 75 |
| Face Width B | 50 |
