Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

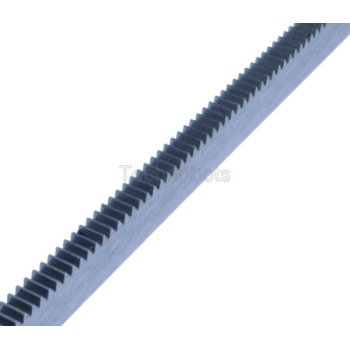

Steel Rectangular Rack Mod 2.5 30x25mmx1m (SR25/25H/1)
Steel Rectangular Rack Mod 2.5 30x25mmx1m (SR25/25H/1)
| Part No. | 7700-347 |
| Code | SR25/25H/1 |
| Pitch Module | 2.5 |
| Width B | 25 |
| Height A | 30 |
| Height to Pitch Line hp | 27.5 |
| Length L | 1000 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
