Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

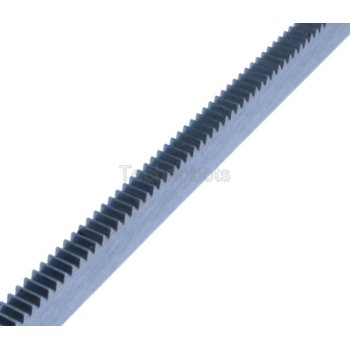

Steel Rectangular Rack Mod 1.5 17x17mmx0.5m (SR15/17/.5)
Steel Rectangular Rack Mod 1.5 17x17mmx0.5m (SR15/17/.5)
| Part No. | 7700-336 |
| Code | SR15/17/.5 |
| Pitch Module | 1.5 |
| Width B | 17 |
| Height A | 17 |
| Height to Pitch Line hp | 15.5 |
| Length L | 500 |
