Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

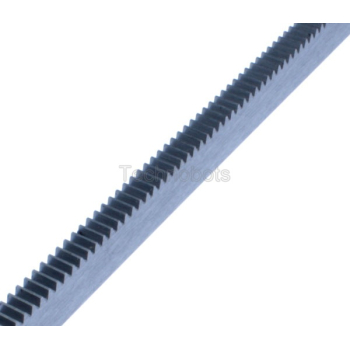

Steel Rectangular Rack Mod 1 15x15mmx0.5m (SR10/15/.5)
Steel Rectangular Rack Mod 1 15x15mmx0.5m (SR10/15/.5)
| Part No. | 7700-325 |
| Code | SR10/15/.5 |
| Pitch Module | 1 |
| Width B | 15 |
| Height A | 15 |
| Height to Pitch Line hp | 14 |
| Length L | 500 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
