Intermediate sizes and special racks to drawing. Standard tolerances, unless otherwise stated ±0.010?. Standard: BS 436 Pt1, fig 1. Grade 8 / 9. All dimensions in inches except where shown. Steel EN8, (080M40/080M46/C45) normalised or equivalent

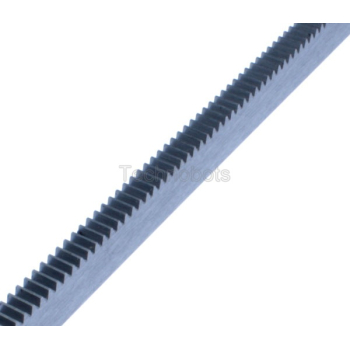

Steel Rectangular Rack 8DP 1.25"x1.25"x1m (SRDP8/32/1)
Steel Rectangular Rack 8DP 1.25"x1.25"x1m (SRDP8/32/1)
| Part No. | 7700-235 |
| Code | SRDP8/32/1 |
| Pitch DP | 8 |
| Width B | 1.25" |
| Overall height A | 1.25" |
| Height to pitch Line hp | 1.125" |
| Length L (mm) | 1000 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
