Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

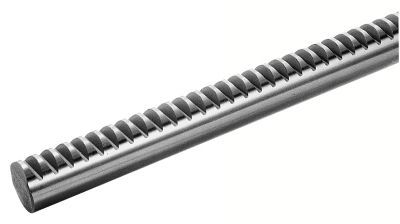

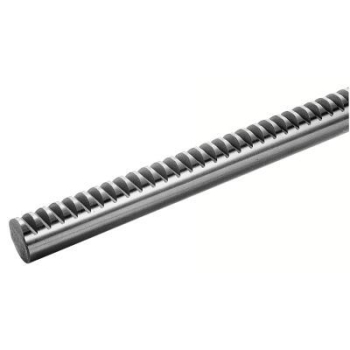

Steel Circle Rack Mod 1 10x10mmx0.5m (SR10/10R/.5)
Steel Circle Rack Mod 1 10x10mmx0.5m (SR10/10R/.5)
| Part No. | 7700-501 |
| Code | SR10/10R/.5 |
| Pitch module | 1 |
| Rack Ø B H7 | 10 |
| Pitch height tolerance | +0mm / 0.05mm |
| Height to pitch line hp | 9 |
| Length L | 500 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
