These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs.. . Cut to the Gleason System. 20° pressure angle. Bore tolerance H8. DIN 3964, DIN 3967, DIN 3971. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm.. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.

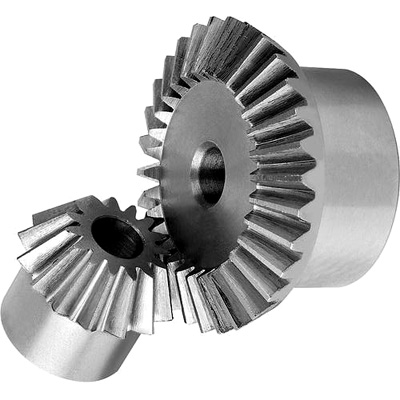

Steel Bevel Gear Mod 5 2:1 16T/32T (SRB50/2N)
Steel Bevel Gear Mod 5 2:1 16T/32T (SRB50/2N)
| Part No. | 7707-455 |
| Code /Ratio | SRB50/2N |
| Pitch Module | 5 |
| No. Teeth | 16 |
| dp (mm) | 80 |
| A+V (mm) | 111 |
| dm (mm) | 56 |
| Bore | 16 |
| F (mm) | 30 |
| A (mm) | 59.91 |
| de (mm) | 91 |
| S (mm) | 5 |
| Lm (mm) | 25 |
| Part No. | 7707-455 |
| Code /Ratio | SRB50/2N |
| Pitch Module | 5 |
| No. Teeth | 32 |
| dp (mm) | 160 |
| A+V (mm) | 85 |
| dm (mm) | 100 |
| Bore | 20 |
| F (mm) | 161 |
| A (mm) | 8 |
| de (mm) | 30 |
| S (mm) | |
| Lm (mm) |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
