Metric Spiral Bevel Gears



  • DIN 3964, DIN 3967, DIN 3971
  • Standard tolerances, unless otherwise stated ±0.25 mm
  • Shaft axis to intersect within ±0.025mm
  • Angular accuracy between shafts ±5mins
  • Mounting distance tolerance ±0.05mm
  • Bore tolerance H8
  • Cut to the Gleason System
  • 20° pressure angle
  • Supplied in pairs
  • All dimensions in mm
  • Steel EN8, (080M40/080M46) or equivalent

All dimensions subject to change, if a dimension is critical to your application, please contact us for confirmation.

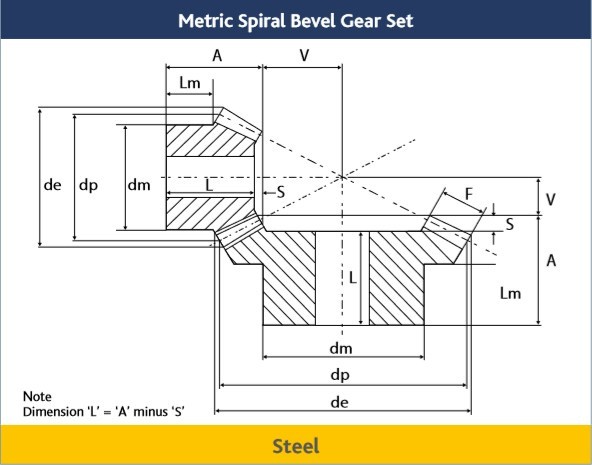

Part No. Code Pitch Module No. Teeth dp (mm) de (mm) dm (mm) Bore (H8) F (mm) Lm (mm) A (mm) V+A (mm) S (mm)
7707-301 SRBSP15/2 1.5 16 24 27 20 10 8 9.5 18.6 35 1.6
1.5 32 48 48 32 12 8 10 20 28 2
7707-302 SRBSP20/2 2 16 32 36 27 10 10 11.7 22.5 45 1.5
2 32 64 65 40 12 10 10 24.1 35 2.6
7707-303 SRBSP25/2 2.5 16 40 45 32 12 12 14 27.5 56 2.4
2.5 32 80 81 50 15 12 15 29.2 43 3.3
7707-304 SRBSP30/2 3 16 48 54 40 15 15 12 28.4 62 3.2
3 32 96 97 60 15 15 15 34.6 51 4.8
7707-305 SRBSP40/2 4 16 64 72 50 20 20 13.5 36.2 81 4
4 32 128 129 80 20 20 23 44.2 66 5.5
7707-306 SRBSP50/2 5 16 80 90 60 20 25 21 50 106 4.7
5 32 160 162 90 25 25 27 53.7 81 6.9
