These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs.. . Cut to the Gleason System. 20° pressure angle. Bore tolerance H8. DIN 3964, DIN 3967, DIN 3971. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm.. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.

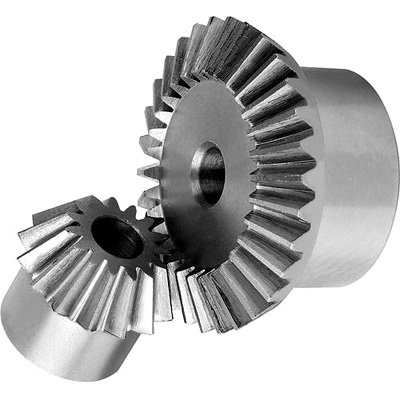

Steel Bevel Gear Mod 4.5 4:1 15T/60T (SRB45/4)
Steel Bevel Gear Mod 4.5 4:1 15T/60T (SRB45/4)
Part No. | 7707-452 |
Code /Ratio | SRB45/4 |
Pitch Module | 4.5 |
No. Teeth | 15 |
dp (mm) | 67.5 |
A+V (mm) | 159.9 |
dm (mm) | 52.3 |
Bore | 20 |
F (mm) | 32 |
A (mm) | 57 |
de (mm) | 79.97 |
S (mm) | 0 |
Lm (mm) | 23 |
Part No. | 7707-452 |
Code /Ratio | SRB45/4 |
Pitch Module | 4.5 |
No. Teeth | 60 |
dp (mm) | 270 |
A+V (mm) | 86.3 |
dm (mm) | 90.3 |
Bore | 20/30 |
F (mm) | 271.2 |
A (mm) | 8.5 |
de (mm) | 40 |
S (mm) | |
Lm (mm) |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
