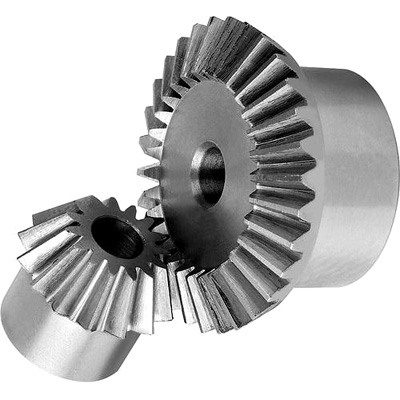

These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. Type B, 20° pressure angle. Bore tolerance H8. UNI EN 10083-1, C45E Steel. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm.. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.
Steel Bevel Gear Mod 2 3:1 15T/45T (similar to SRB20/3)
Steel Bevel Gear Mod 2 3:1 15T/45T (similar to SRB20/3)
| Part No. | 7707-417 |
| Code /Ratio | SRB20/3 |
| Pitch Module | 2 |
| No. Teeth | 15 |
| dp (mm) | 30 |
| V (mm) | 31.1 |
| d (mm) | 25.3 |
| Bore D | 8 |
| F (mm) | 14 |
| H (mm) | 28.9 |
| de (mm) | 35.4 |
| S (mm) | |
| Lm (mm) | 14.2 |
| Part No. | 7707-417 |
| Code /Ratio | SRB20/3 |
| Pitch Module | 2 |
| No. Teeth | 45 |
| dp (mm) | 90 |
| V (mm) | 9.9 |
| d (mm) | 45.3 |
| Bore D | 16 |
| F (mm) | 14 |
| H (mm) | 32.1 |
| de (mm) | 90.8 |
| S (mm) | 3.7 |
| Lm (mm) | 20.0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
