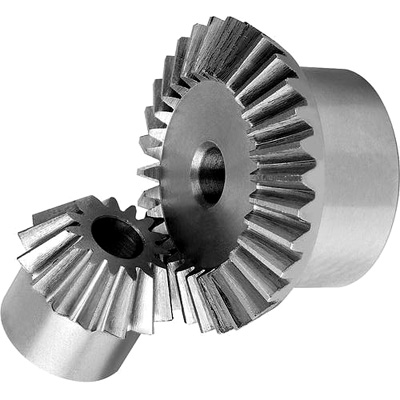

These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. Type B, 20° pressure angle. Bore tolerance H8. UNI EN 10083-1, C45E Steel. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm.. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.
Steel Bevel Gear Mod 1 1.5:1 16T/24T (similar to SRB10/1.5)
Steel Bevel Gear Mod 1 1.5:1 16T/24T (similar to SRB10/1.5)
| Part No. | 7707-401 |
| Code /Ratio | SRB10/1.5 |
| Pitch Module | 1 |
| No. Teeth | 16 |
| dp (mm) | 16 |
| V (mm) | 8 |
| d (mm) | 13.3 |
| Bore D | 4 |
| F (mm) | 4.3 |
| H (mm) | 12 |
| de (mm) | 18.1 |
| S (mm) | |
| Lm (mm) | 7 |
| Part No. | 7707-401 |
| Code /Ratio | SRB10/1.5 |
| Pitch Module | 1 |
| No. Teeth | 24 |
| dp (mm) | 24 |
| V (mm) | 4.2 |
| d (mm) | 20.3 |
| Bore D | 5 |
| F (mm) | 4.3 |
| H (mm) | 14.8 |
| de (mm) | 24.8 |
| S (mm) | 1.5 |
| Lm (mm) | 9.3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
