SPZ 4 Groove V Pulleys taper bore for use with our taper bushes.

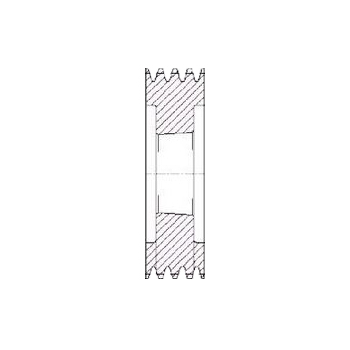

Spz190/4 V Pulley For 2517 T/L Bush (SPZ190/4)
Spz190/4 V Pulley For 2517 T/L Bush (SPZ190/4)
| Part No. | 7804-712 |
| Type | SPZ190/4 |
| Diameter P (mm) | 190 |
| Diameter O (mm) | 194 |
| Style | 3 |
| Bush | 2517 |
| Bore ø max. | 60 |
| E | |
| J | 161 |
| K | 3.5 |
| L | 45 |
| M | 3.5 |
| N | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
