Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 96L050/7A For 2012 T/L Bush (T96L050)
Pulley 96L050/7A For 2012 T/L Bush (T96L050)
| Part No. | 7801-159 |
| Code | T96L050 |
| Material | Steel |

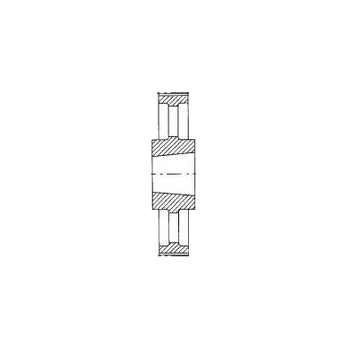

| Type | 4 |
| No. Teeth | 96 |
| Bush | 2012 |
| Dp | 291.06 |
| De | 290.3 |
| Df | _ |
| Dm | 106 |
| Di | 270 |
| F | 19 |
| S | 32 |
| R | 6.5 |
| No. flanges | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
