Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.

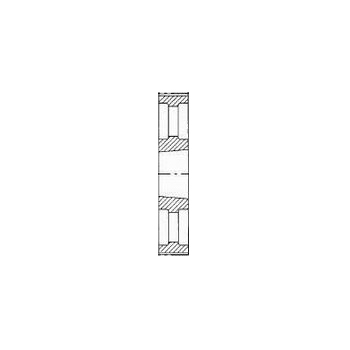

Pulley 84L100/3A For 2012 T/L Bush (T84L100)
Pulley 84L100/3A For 2012 T/L Bush (T84L100)
| Part No. | 7801-158 |
| Code | T84L100 |
| Material | Cast Iron |
| Type | 8 |
| No. Teeth | 2012 |
| Bush | 84 |
| Dp | 255 |
| De | 254 |
| Df | |
| Dm | 106 |
| Di | 236 |
| F | 32 |
| S | 32 |
| R | |
| No. flanges | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
