Timing Pulleys H150 (0.5" / 12.7mm pitch) for 38.1mm (1.5") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.

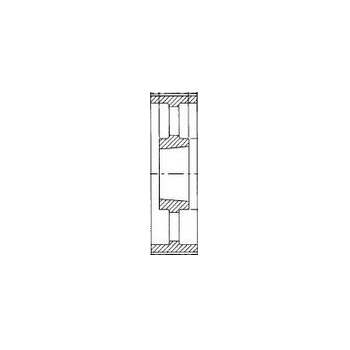

Pulley 96H150/9A For 2517 T/L Bush (T96H150)
Pulley 96H150/9A For 2517 T/L Bush (T96H150)
| Part No. | 7800-980 |
| Code | T96H150 |
| Material | Cast Iron |
| Type | 12 |
| No.teeth | 96 |
| Bush | 2517 |
| Dp | 388.08 |
| De | 386.71 |
| Df | |
| Dm | 119 |
| Di | 366 |
| F | 46 |
| S | 45 |
| R | 0.5 |
| No. flanges | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
