Timing Pulleys H150 (0.5" / 12.7mm pitch) for 38.1mm (1.5") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 84H150/9A For 2012 T/L Bush (T84H150)
Pulley 84H150/9A For 2012 T/L Bush (T84H150)
| Part No. | 7800-976 |
| Code | T84H150 |
| Material | Cast Iron |

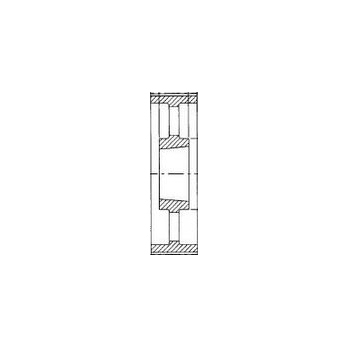

| Type | 12 |
| No.teeth | 84 |
| Bush | 2012 |
| Dp | 339.57 |
| De | 338.2 |
| Df | |
| Dm | 106 |
| Di | 318 |
| F | 46 |
| S | 32 |
| R | 7 |
| No. flanges | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
