Timing Pulleys L050 (0.375" / 9.525mm pitch) for 12.7mm (1/2") wide belt. Pilot bore, manufactured in steel or Cast Iron with steel flanges.

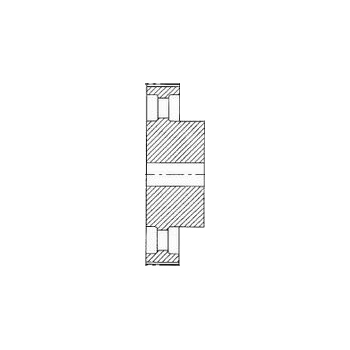

Pulley 84L050, With Pilot Bore (P84L050)
Pulley 84L050, With Pilot Bore (P84L050)
| Part No. | 7801-085 |
| Material | P84L050 |
| Code | P84L050 |
| Type | 4 |
| No. Teeth | 84 |
| Dp | 255 |
| De | 254 |
| Df | |
| Dm | 75 |
| F | 19 |
| L | 42 |
| Bore(d) | 14 |
| No. Flanges | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
