Timing Pulleys H075 (0.5" / 12.7mm pitch) for 19.05mm (3/4") wide belt. Centre drilled or Pilot Bore in Steel or Cast Iron with steel flanges.

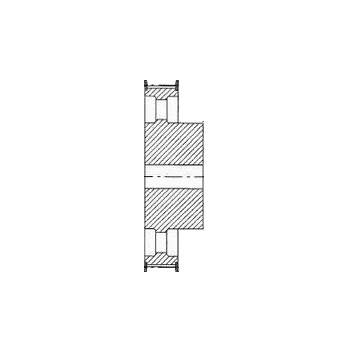

Pulley 48H075F, With Pilot Bore (P48H075F)
Pulley 48H075F, With Pilot Bore (P48H075F)
| Part No. | 7800-807 |
| Code | P48H075F |
| Type | 5F |
| No.teeth | 48 |
| Dp | 194 |
| De | 192.67 |
| Df | 200 |
| Dm | 90 |
| F | 26.4 |
| L | 40 |
| d | 14 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
