Timing Pulleys H300 (0.5" / 12.7mm pitch) for 76.2mm (3") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.

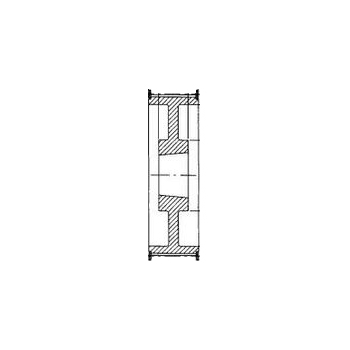

Pulley 44H300/4Wf For 2517 T/L Bush (T44H300F)
Pulley 44H300/4Wf For 2517 T/L Bush (T44H300F)
| Part No. | 7800-962 |
| Code | T44H300F |
| Material | Steel |
| Type | 14F |
| No.teeth | 2517 |
| Bush | 44 |
| Dp | 177.87 |
| De | 176.5 |
| Df | 184 |
| Dm | 119 |
| Di | 150 |
| F | 86 |
| S | 45 |
| R | 20.5 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
