Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 36H100/5Wf For 1610 T/L Bush (T36H100F)
Pulley 36H100/5Wf For 1610 T/L Bush (T36H100F)
| Part No. | 7800-951 |
| Code | T36H100F |
| Material | Steel |

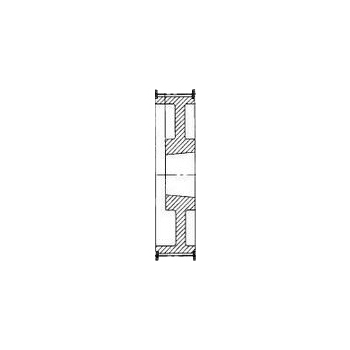

| Type | 10F |
| No.teeth | 36 |
| Bush | 1610 |
| Dp | 145.53 |
| De | 144.16 |
| Df | 150 |
| Dm | 92 |
| Di | 121 |
| F | 32 |
| S | 25 |
| R | 7 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
