Timing Pulleys H200 (0.5" / 12.7mm pitch) for 50.8mm (2") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 18H200/5F For 1210 T/L Bush (T18H200F)
Pulley 18H200/5F For 1210 T/L Bush (T18H200F)
| Part No. | 7800-904 |
| Code | T18H200F |
| Material | Steel |

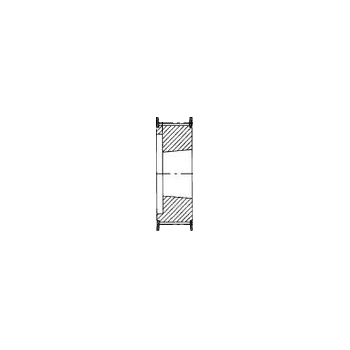

| Type | 9F |
| No.teeth | 18 |
| Bush | 1210 |
| Dp | 72.77 |
| De | 71.39 |
| Df | 79 |
| Dm | |
| Di | 52 |
| F | 58 |
| S | 25 |
| R | 33 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
