Timing Pulleys H200 (0.5" / 12.7mm pitch) for 50.8mm (2") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.

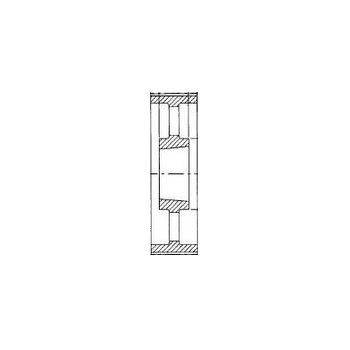

Pulley 120H200/9A For 2517 T/L Bush (T120H200)
Pulley 120H200/9A For 2517 T/L Bush (T120H200)
| Part No. | 7800-985 |
| Code | T120H200 |
| Material | Cast Iron |
| Type | 12 |
| No.teeth | 120 |
| Bush | 2517 |
| Dp | 485.1 |
| De | 483.73 |
| Df | |
| Dm | 119 |
| Di | 462 |
| F | 60 |
| S | 45 |
| R | 7.5 |
| No. flanges | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
