Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

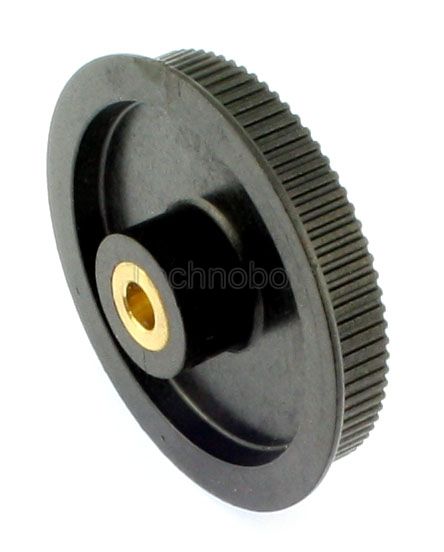

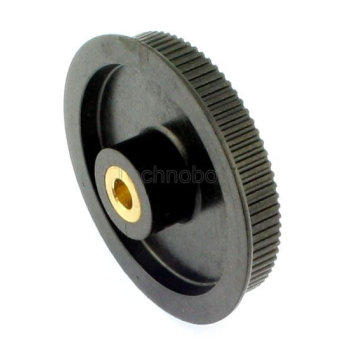

MXL025 Plastic Timing Pulley 110 Teeth Brass Ins
MXL025 Plastic Timing Pulley 110 Teeth Brass Ins
Part No. | 4630-110 |
Code | PP110MXL025MI |
Insert | Brass |
Type | C |
No. Teeth | 110 |
Dp | 71.15 |
De | 70.63 |
Df | 75 |
Dm | 17 |
Fw | 8 |
L | 17.5 |
Bore (d) | 6 |
Pw | 11 |
GrubScrew Gs | 1 x M3 |
K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
