Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

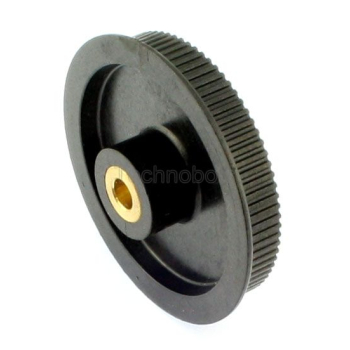

MXL025 Plastic Timing Pulley 100 Teeth Brass Ins
MXL025 Plastic Timing Pulley 100 Teeth Brass Ins
| Part No. | 4630-100 |
| Code | PP100MXL025MI |
| Insert | Brass |
| Type | C |
| No. Teeth | 100 |
| Dp | 64.67 |
| De | 64.16 |
| Df | 69 |
| Dm | 17 |
| Fw | 8 |
| L | 17.5 |
| Bore (d) | 6 |
| Pw | 11 |
| GrubScrew Gs | 1 x M3 |
| K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
