Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

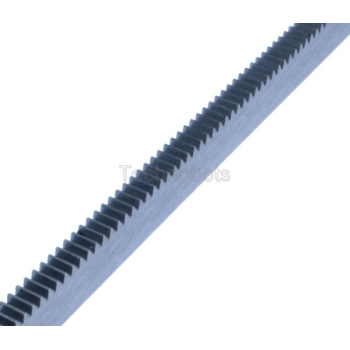

Mod 5 Rack 50x50x2m Ind Hardened Teeth (SR50/50/2CIHT)
Mod 5 Rack 50x50x2m Ind Hardened Teeth (SR50/50/2CIHT)

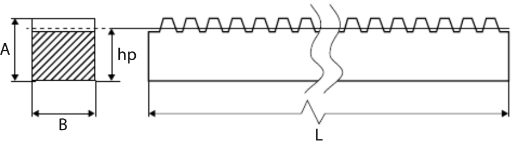

| Part No. | 7700-381 |
| Code | SR50/50/2CIHT |
| Pitch module | 5 |
| Width B (h11) | 50 |
| Height A (h11) | 50 |
| Height to Pitch Line hp | 45 |
| Tolerance of cut for continuous mounting | -0.05/-1.65 |
| No. teeth | 128 |
| Length L | 2010.62 |
