DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White HOSTAFORM® C

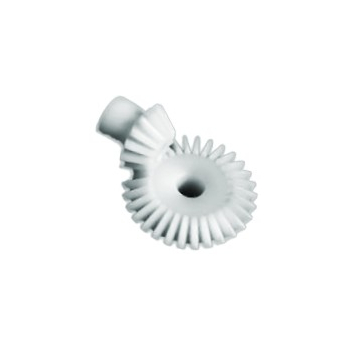

Mod 1 4:1 Bevel Hostaform C Gear 10T/40T (WPRB10/4)
Mod 1 4:1 Bevel Hostaform C Gear 10T/40T (WPRB10/4)
| Part No. | 7707-203 |
| Code | WPRB10/4 |
| Pitch module | 1 |
| No. teeth | 10 |
| dp (mm) | 10 |
| de(mm) | 12 |
| dm (mm) | 7.8 |
| Bore | 4 |
| F(mm) | 8.2 |
| Lm(mm) | 9.3 |
| A(mm) | 17.7 |
| A+V (mm) | 30.1 |
| S (mm) | 0 |
| Part No. | 7707-203 |
| Code | WPRB10/4 |
| Pitch module | 1 |
| No. teeth | 40 |
| dp (mm) | 40 |
| de(mm) | 40.8 |
| dm (mm) | 23.4 |
| Bore | 10 |
| F(mm) | 8.2 |
| Lm(mm) | 10.8 |
| A(mm) | 17 |
| A+V (mm) | 20.1 |
| S (mm) | 1.3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
