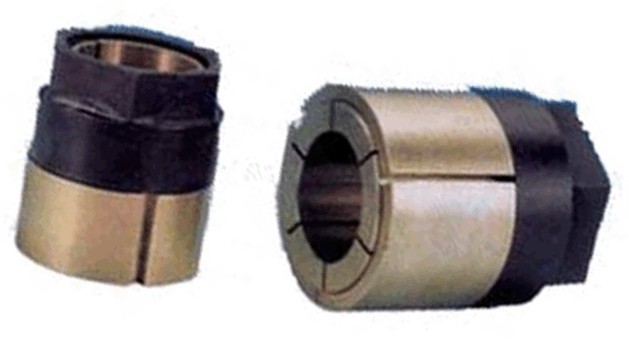

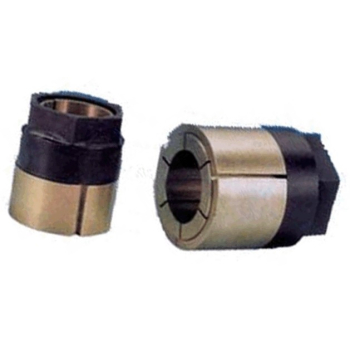

Translock® Mini Keyless Locking Bushes in Metric Series
Mini Translock Bushes 7x19mm (TRMINI7X19)
Mini Translock Bushes 7x19mm (TRMINI7X19)
| Part No. | 7933-119 |
| Code | TRMINI7X19 |
| Bore d (mm) | 7 |
| Outside diameter D (mm) | 19 |
| L1 | 22 |
| L2 | 11 |
| W | 16 |
| B | 3 |
| Torque (Nm) | 20.1 |
| Thrust (N) | 3830 |
| Hub pressure (N/cm2) | 2600 |
| Nut torque (Nm) | 17 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
