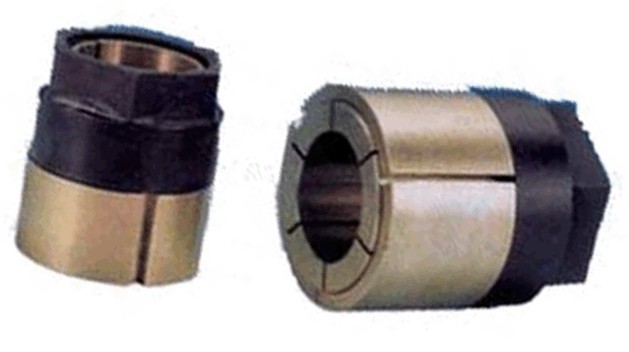

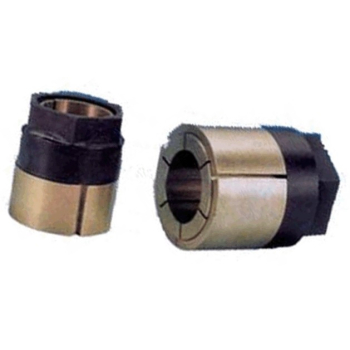

Translock® Mini Keyless Locking Bushes in Metric Series
Mini Translock Bushes 6x16mm (TRMINI6X16)
Mini Translock Bushes 6x16mm (TRMINI6X16)
| Part No. | 7933-118 |
| Code | TRMINI6X16 |
| Bore d (mm) | 6 |
| Outside diameter D (mm) | 16 |
| L1 | 19 |
| L2 | 9.5 |
| W | 13 |
| B | 3 |
| Torque (Nm) | 15.7 |
| Thrust (N) | 3580 |
| Hub pressure (N/cm2) | 3600 |
| Nut torque (Nm) | 14.1 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
