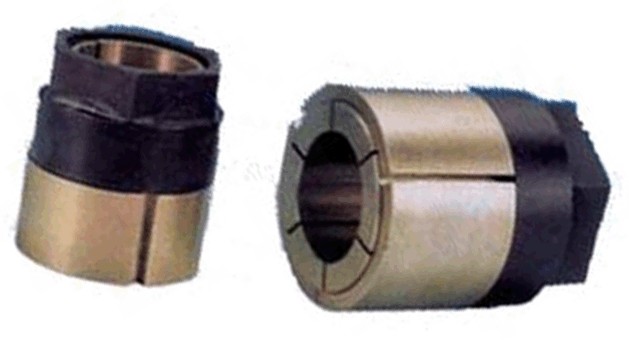

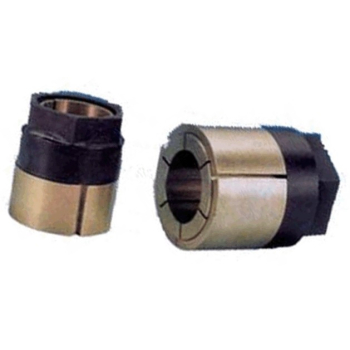

Translock® Mini Keyless Locking Bushes in Inch Series
Mini Translock Bushes 3/8"x3/4" (TRMINI3/8X3/4)
Mini Translock Bushes 3/8"x3/4" (TRMINI3/8X3/4)
| Part No. | 7933-105 |
| Code | TRMINI3/8X3/4 |
| Bore d (in) | 3/8 |
| Outside diameter (in) | 3/4 |
| L1 | 7/8 |
| L2 | 7/16 |
| W | 5/8 |
| B | 1/8 |
| Torque (Nm) | 28.3 |
| Thrust (N) | 4110 |
| Hub pressure (N/cm2) | 2550 |
| Nut torque (Nm) | 17 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
