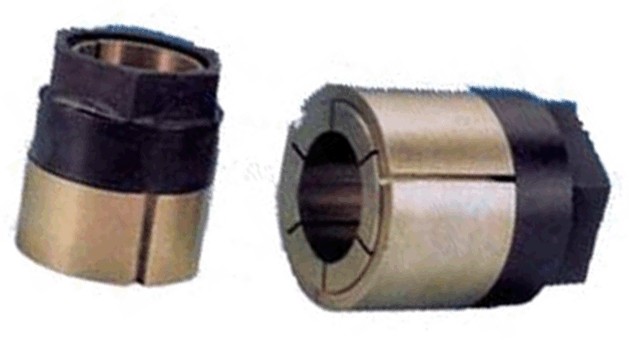

Translock® Mini Keyless Locking Bushes in Inch Series
Mini Translock Bushes 3/4"x1-1/4" (TRMINI3/4X1-1/4)
Mini Translock Bushes 3/4"x1-1/4" (TRMINI3/4X1-1/4)

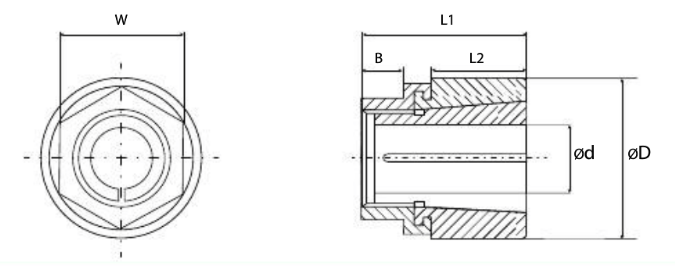

| Part No. | 7933-104 |
| Code | TRMINI3/4X1-1/4 |
| Bore d (in) | 3/4 |
| Outside diameter (in) | 1-1/4 |
| L1 | 1-3/8 |
| L2 | 3/4 |
| W | 1-1/16 |
| B | 1/4 |
| Torque (Nm) | 169.5 |
| Thrust (N) | 8900 |
| Hub pressure (N/cm2) | 5520 |
| Nut torque (Nm) | 39.5 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
