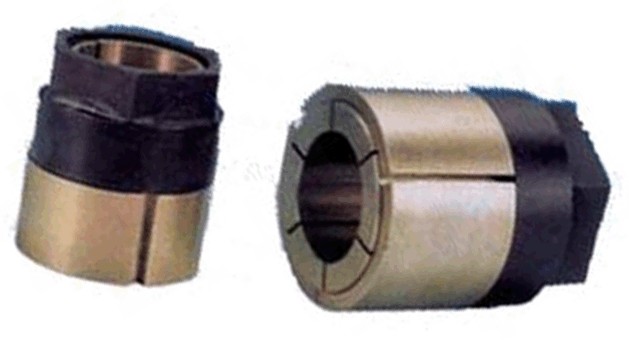

Translock® Mini Keyless Locking Bushes in Inch Series
Mini Translock Bushes 3/16"x5/8" (TRMINI3/16X5/8)
Mini Translock Bushes 3/16"x5/8" (TRMINI3/16X5/8)
| Part No. | 7933-103 |
| Code | TRMINI3/16X5/8 |
| Bore d (in) | 3/16 |
| Outside diameter (in) | 5/8 |
| L1 | 3/4 |
| L2 | 3/8 |
| W | 1/2 |
| B | 1/8 |
| Torque (Nm) | 11.3 |
| Thrust (N) | 3110 |
| Hub pressure (N/cm2) | 3590 |
| Nut torque (Nm) | 14.1 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
