Translock® Mini Keyless Locking Bushes in Metric Series

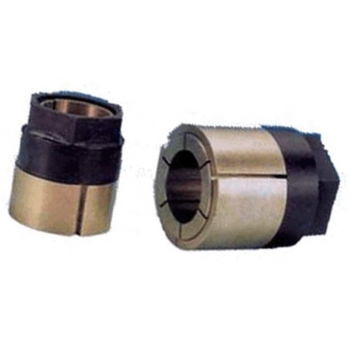

Mini Translock Bushes 12x22.5mm (TRMINI12X22.5)
Mini Translock Bushes 12x22.5mm (TRMINI12X22.5)
| Part No. | 7933-112 |
| Code | TRMINI12X22.5 |
| Bore d (mm) | 12 |
| Outside diameter D (mm) | 22.5 |
| L1 | 25.5 |
| L2 | 12.5 |
| W | 19 |
| B | 5 |
| Torque (Nm) | 39 |
| Thrust (N) | 4390 |
| Hub pressure (N/cm2) | 1900 |
| Nut torque (Nm) | 20.1 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
