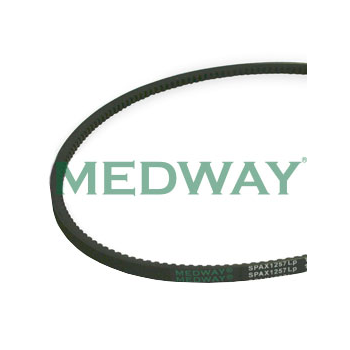

Medway XPA1157 Cogged V-Belt
Raw Edge Cogged Wedge Belts are high performance and are designated by letters standing for their cross-section, e.g. SPAX followed by a number e.g. 1600 which specifies the belts pitch length Lp in mm. They enable; resistance to repeated flexing, compact drives, reduced weight, cost savings, small pulley diameters and high drive ratios. They are manufactured in the cross-sections SPZX (XPZ), SPAX (XPA), SPBX (XPB) and SPCX (XPC) and are static conductive to ISO1813.
Specification
- Code: XPA1157
- Manufacturer: Medway or similar brand
- Width (mm): 12.7
- Depth (mm): 10
- Outside length (mm): 1175
- Pitch length (mm): 1157
- Pitch Length (in): 45.6
- Inside length (mm): 1112
- Inside length (in): 43.8
- Pitch between bands (mm banded type only): -
