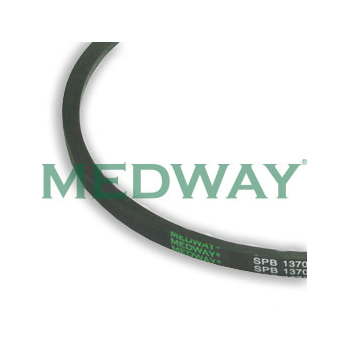

Medway SPZ1020 Wrapped V-Belt
Wrapped Wedge Belts are designated by letters standing for their cross-section, e.g. SPA followed by a number e.g. 1600 which specifies the belts pitch length Lp in mm. Due to their high power ratings savings can be made over classical V-Belts, smaller pulley diameters and reduced numbers of belts and be incorporated into more compact drives. Wedge Belts are produced to BS3790, DIN 7753 and AFOR T 47-117 standards. They are manufactured in the cross-sections SPZ, SPA, SPB and SPC.
Specification
- Code: SPZ1020
- Manufacturer: Medway or similar brand
- Width (mm): 9.7
- Depth (mm): 8
- Outside length (mm): 1033
- Pitch length (mm): 1020
- Pitch Length (in): 40.2
- Inside length (mm): 982
- Inside length (in): 38.7
- Pitch between bands (mm banded type only): -
