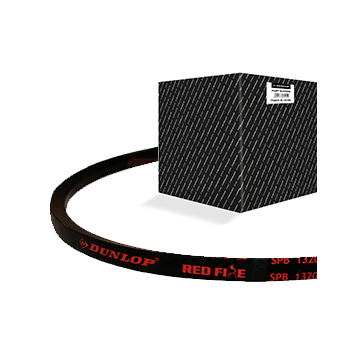

Dunlop SPZ2120 Red Fire V-Belt
Wrapped Wedge Belts are designated by letters standing for their cross-section, e.g. SPA followed by a number e.g. 1600 which specifies the belts pitch length Lp in mm. Due to their high power ratings savings can be made over classical V-Belts, smaller pulley diameters and reduced numbers of belts and be incorporated into more compact drives. Wedge Belts are produced to BS3790, DIN 7753 and AFOR T 47-117 standards. They are manufactured in the cross-sections SPZ, SPA, SPB and SPC.
RED FIRE use different materials and design features, together with an improved production process, have led to the development of a new class of higher rated wrapped V-belts. The new RED FIRE V-belts products family can operate in a wide range of industrial applications, within a large spread of load capacities and speeds offering rated performance from 100 to 8,000 RPM and power capability from 1 to 400 kW, meanwhile granting large cost advantages for the end users.
Specification
- Code: SPZ2120
- Manufacturer: Dunlop
- Width (mm): 9.7
- Depth (mm): 8
- Outside length (mm): 2133
- Pitch length (mm): 2120
- Pitch Length (in): 83.5
- Inside length (mm): 2082
- Inside length (in): 82
- Pitch between bands (mm banded type only): -
