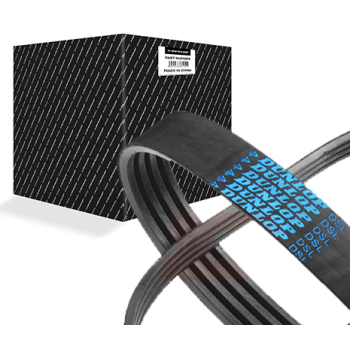

Dunlop SPC4250/BAND Wrapped Banded V-Belt
Banded V-Belts & Wedge Belts are sets of belts assembled together. Besides incorporating all of the features of standard belts, the belts are joined together to form a band gives the following additional features; no flapping during abrupt load variations, no possibility of turning over and are ideal in high vibration applications. Part numbers are designated by letters standing for their cross-section, e.g. SPB followed by a number e.g. 2000 which specifies the belts pitch length.
Specification
- Code: SPC4250/BAND
- Manufacturer: Dunlop
- Width (mm): 22
- Depth (mm): 18
- Outside length (mm): 4280
- Pitch length (mm): 4250
- Pitch Length (in): 167.3
- Inside length (mm): 4167
- Inside length (in): 164.1
- Pitch between bands (mm banded type only): 25.5
