Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm

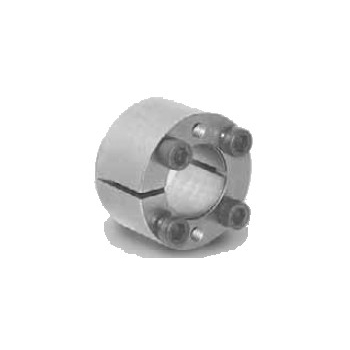

Drivelock 61 25x47mm (DL61/25)
Drivelock 61 25x47mm (DL61/25)
Part No. | 7930-811 |
Code | DL61/25 |
d (h8) (mm) | 25 |
D (mm) | 47 |
L1 (mm) | 26 |
L (mm) | 32 |
B (mm) | M6 |
Ts Nm | 16.5 |
T Nm | 260 |
F kN | 20 |
p N/mm2 | 75 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
