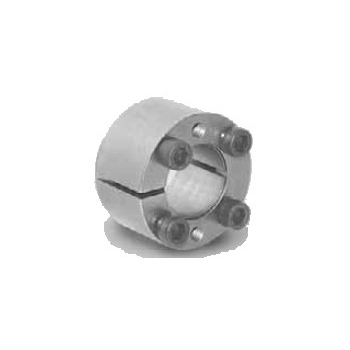

Drivelock® 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mm
Drivelock 61 25.4x47mm (DL61/25.4)
Drivelock 61 25.4x47mm (DL61/25.4)
| Part No. | 7930-812 |
| Code | DL61/25.4 |
| d (h8) (mm) | 25.4 |
| D (mm) | 47 |
| L1 (mm) | 26 |
| L (mm) | 32 |
| B (mm) | M6 |
| Ts Nm | 16.5 |
| T Nm | 304 |
| F kN | 22 |
| p N/mm2 | 78 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
