Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

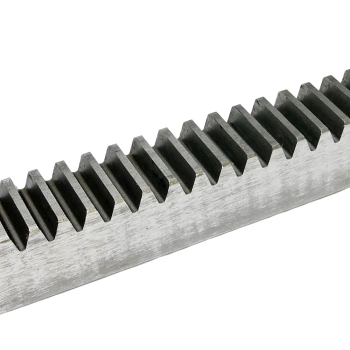

Cont. Mounting Steel Rectangular Rack Mod 3 30x30mmx1m (SR30/30/1C)
Cont. Mounting Steel Rectangular Rack Mod 3 30x30mmx1m (SR30/30/1C)
| Part No. | 7700-413 |
| Code | SR30/30/1C |
| Pitch Module | 3 |
| Width B | 30 |
| Height A | 30 |
| Height to Pitch Line hp | 27 |
| No. of Teeth | 106 |
| Length L | 999.02 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
