Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40, 080M46, 212A42), normalised or equivalent

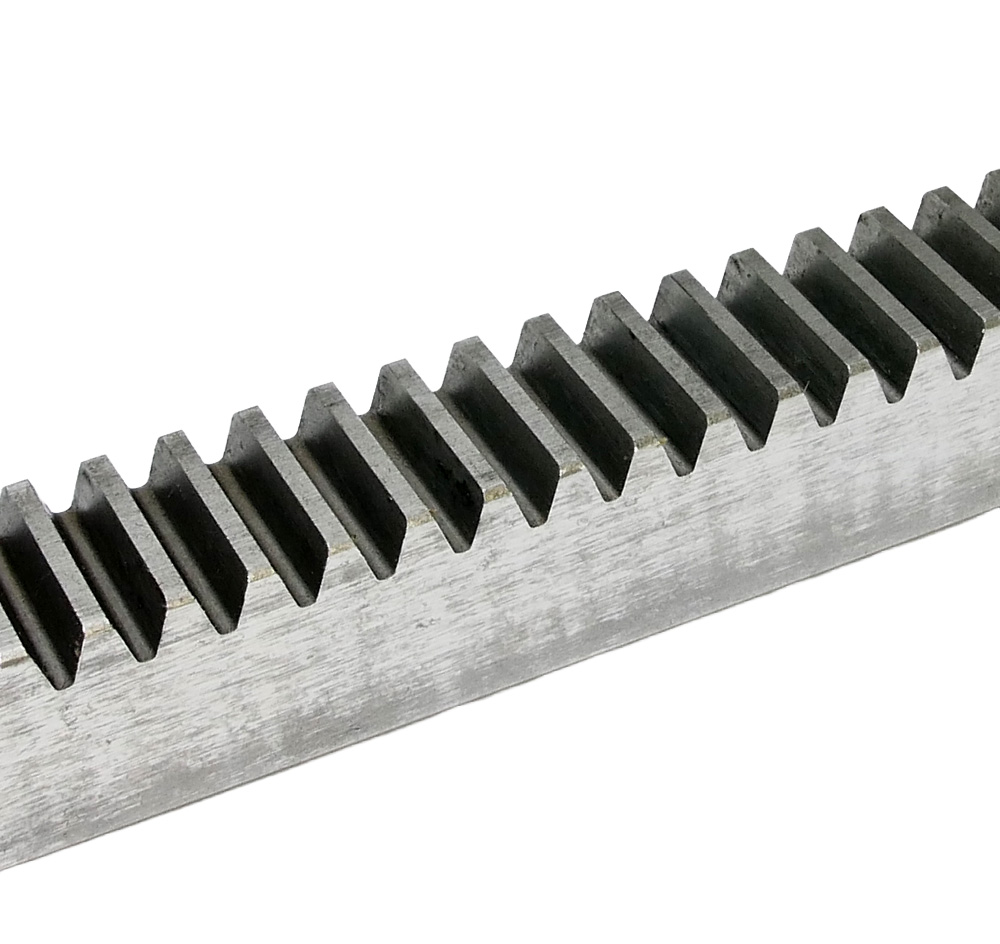

Cont. Mounting Steel Rectangular Rack Mod 1.5 17x17mmx2m (SR15/17/2C)
Cont. Mounting Steel Rectangular Rack Mod 1.5 17x17mmx2m (SR15/17/2C)
| Part No. | 7700-405 |
| Code | SR15/17/2C |
| Pitch Module | 1.5 |
| Width B | 17 |
| Height A | 17 |
| Height to Pitch Line hp | 15.5 |
| No. of Teeth | 424 |
| Length L | 1998.05 |
